Product Description

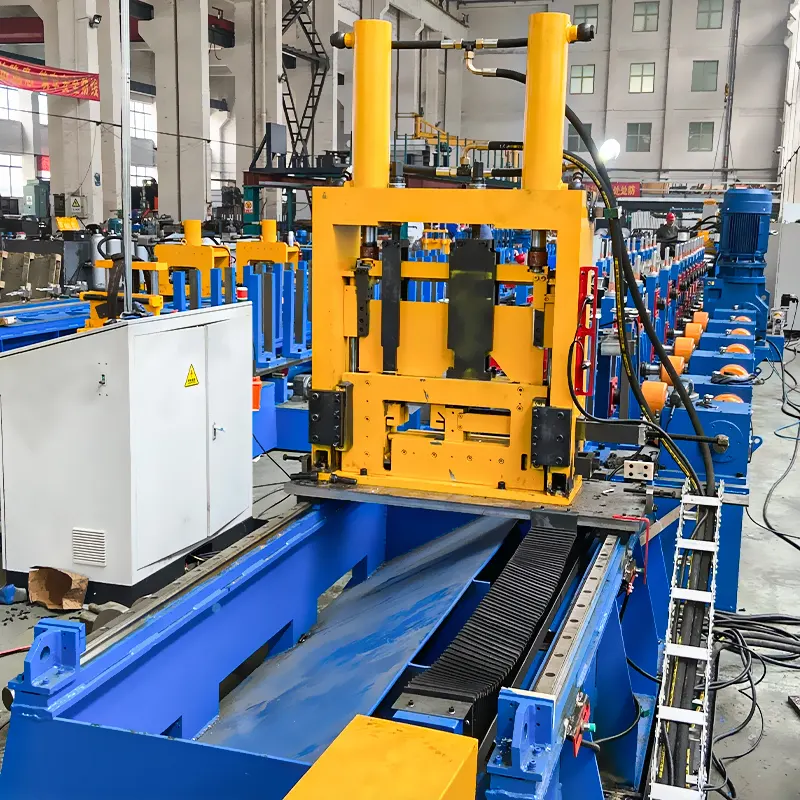

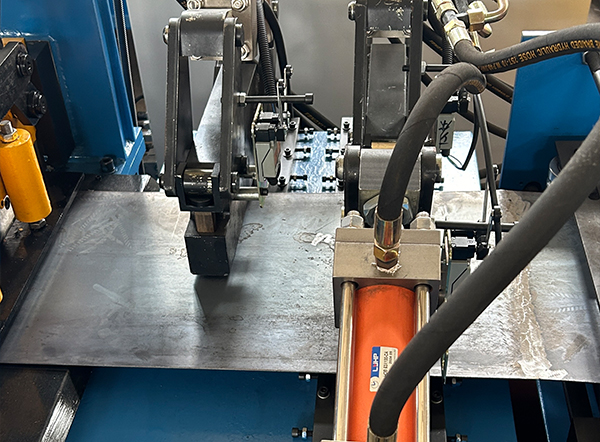

This C/Z Purlin Roll Forming Machine is used to produce C&Z shape purlins from 100-300mm of width, normally its material thickness is 1.5-3mm, also Maximum thickness can be formed at 4.0-6.0mm according to customer requirement.  SUNWAY design this CZ purlin quick changeable roll forming machine to work with any size of the purlin, automatically adjustable sizes by PLC. Whats’ more, Changing time from C to Z only need 10 minutes. Regarding the punching unit, we can design pre punching, post punching according to your requirement. For cutting unit, you can choose the pre-cut or post-cut which is universal cutting. The driving system we adopt the chain and mostly with gimbal /gearbox for transmission if the raw material is thicker than 2.5mm,this is much more strong driving power and more stable when forming the purlins. Purlin roll forming machine is the most popular and has an extensive use in Metal Building Systems, Huge RoofingSolutions, Construction and Renovation Projects etc. Our Purlin roll forming machine could produce C purlin, U purlin, Z purlin, machineable size range as follow: Width:100-300mm, Height: 50-100mm, Thickness:1.5-3mm. According to your section profile, size range, thickness range we could provide you different solutions of purlin roll forming machine to manufacturer a complete range of structual purlins (height and width change using automatic system by motors): If you only need to produce few sizes, we also suggest manually change sleeves, it’s more affordable. We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

Profile Drawings

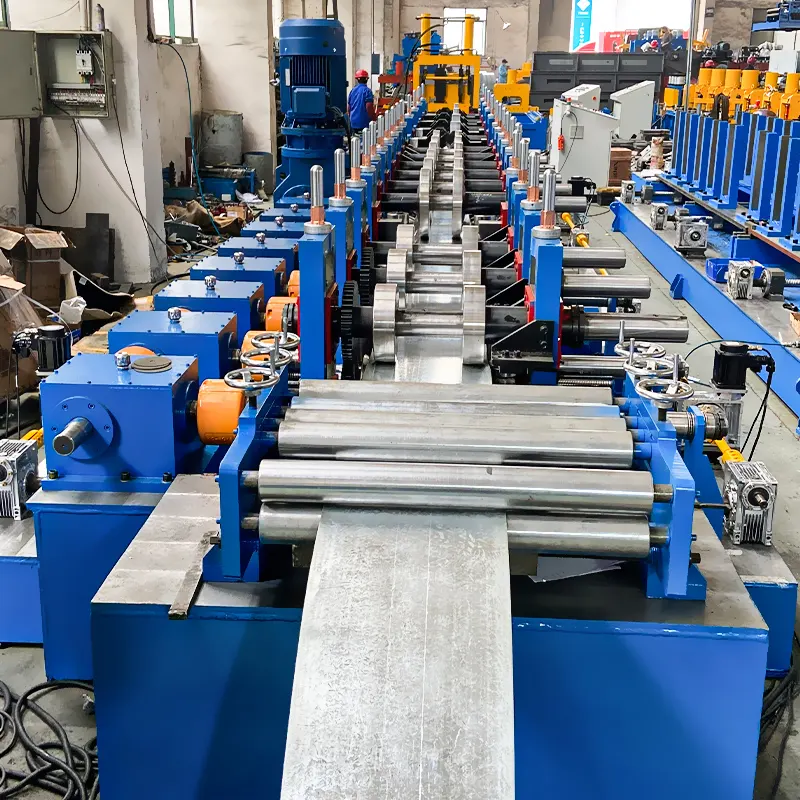

Production Line

Product Details

Product Paramenters

Application

HOW DOES SUNWAY MACHINERY MAKE INSTALLATION DURING COVID-19?

The installation of roll forming machine online during COVID-19 is for free!

Hereby SUNWAY will explain how we do the installation of our roll forming machine.

First, we adjust the machine in our plant, we will ask which size you are going to produce first, we put the machine in the size it is going to produce and adjust all the correct parameters before the shipment, so you do not need to change anything when you got this machine.

Second, when we disassemble the machine for debug, we take videos so that you know how to connect them. It will show how to connect the cables and tubes, put the oils, put together the physical structures etc.

Third, when you receive the equipment, we will build a whatsapp or wechat group, our boss, engineer who design the machine, technician who assembly and calibrate machine and sales all will be in the group to support you in any doubt.

Fourth, we send you a manual in English so that you understand all the meanings of the buttons and how to start the machine.

Finally, SUNWAY has professional oversea engineer who can go to your place to install the machine and train your workers

especially in Middle East and Africa. The engineer can speak English, Arabic.

We have had many successes installing more complex machines in the years since COVID-19. For example

1) CZ automatic exchangeable roll forming machine installed successfully in UAE, Senegal, Cango

2) Roofing sheet roll forming machine installed successfully in Qatar, Bangladesh, Philippines, Turkey, UAE, etc.

3) PU sandwich panel production line installed successfully in Qatar

4) Slitting line installed successfully in Paraguay

5) Cut to length line installed successfully in Turkey.

SUNWAY offers the best quality and the best service for our clients, especially in this situation. You don’t have to wait until

the COVID pass. You can produce the profiles right away with our machines.

Company Profile

WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.

Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.

SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.

FAQ

Q: Are you a manufacturer or trading company?

A:We are factory with professional production team and service consciousness just for exporting various types of roll forming machine.

Q: Do you have after sales support?

A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.

Q: What's your payment terms?

A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

Q: What can you do if the machine broken?

A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.

Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.

Q: Do you sell only standard machines?

A: No, most of our machines are designed according to customers’ specifications, using famous brand components.

Q: How to visit our company?

A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
