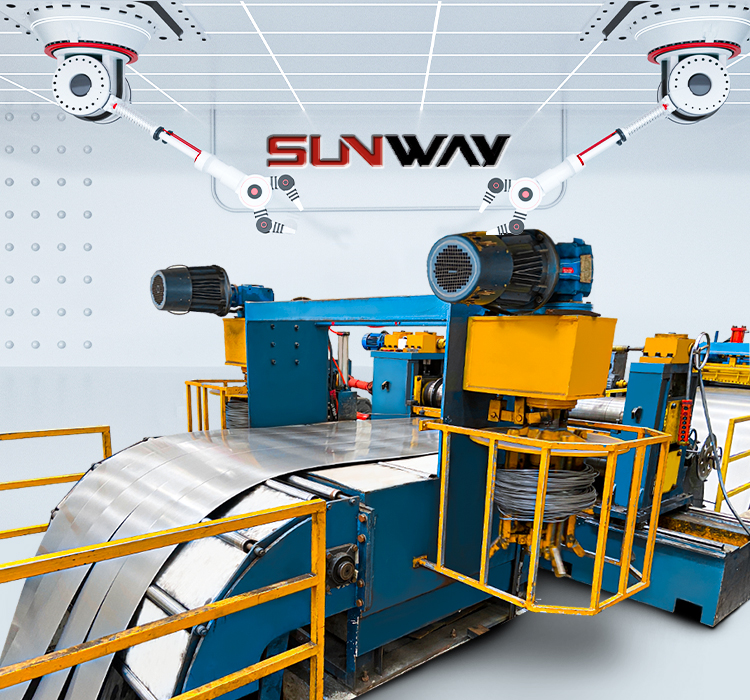

Description:
High Speed Slitting Line is a slitting line that can decoil a mother (original ) coil, slit the mother  (original ) coil into a certain number of small coils, and neatly recoil the slit baby coils at high speed of max 100-150m/min on the premise that slitting precision and recoiling uniformity are not ensured.

Solutions Using This High Speed Coil Slitting Line
Case One: 3 x 1250 High speed Slitting Line
Coil material: high strength carbon steel, silicon steel.
Coil thickness: 0.3-3.0mm
Coil width: 300-1250mm
Coils ID, OD: Φ508, 1800mm
Coils weight: max 20T
Capacity of slitting: at 0.3-1.0mm, max 20strips
At 3mm, max 10strips
Speed of slitting: max 100m/min
Slit strip width tolerance: +/-0.03mm
Camber tolerance: +/-0.1mm/m
Hump tolerance: max 0.5mm
Edge scrap width: 3-8mm which depends on customer's coils quality
Delivery time: 90days.
Business process:
Customer visited our company twice and signed contract in 2010.
After machine arrives at customer's company, we sent two engineers to customer to install & debug the slitting line; the slitting line runs very well.
Customer Comment
Customer is very satisfied with our performances, keep contact with us until now.

Case Two: 4 x 1600 High Speed Slitting Line
Coil material: HR/CR carbon steel, galvanized steel, colored steel, etc.
Coil thickness: 0.4-4.0mm
Coil width: 500-1600mm
Coils ID, OD: Φ508, 2100mm
Coils weight: max 30T
Capacity of slitting: at 0.4-1.0mm, max 20strips
At 4mm, max 10 strips
Speed of slitting: ≤2mm, max 120m/min; 2-3mm, 80m/min; 3-4mm, 60m/min
Delivery time: 120days
Business process:
Customer confirmed the order on his first time of visiting our company in 2011.
We sent engineers to customer's factory, the performance of working machine made customer very happy.

Case Three: 6 x 1600 High Speed Slitting Line
Coil material: HR/CR carbon steel, galvanized steel, colored steel, etc.
Coil thickness: 0.6-6.0mm
Coil width: 500-1600mm
Coils ID, OD: Φ480mm-800mm, 2100mm
Coils weight: max 30T
Capacity of slitting: at 0.6mm, max 20strips
At 6mm, max 8 strips
Speed of slitting:  thickness ≤ 3mm, max 120m/min; more than 3mm, max 80m/min
Delivery time: 120days

Case Four: 8 x 1600 High Speed Slitting Line
Coil material: HR/CR carbon steel, galvanized steel, colored steel, etc.
Coil thickness: 0.6-8.0mm
Coil width: 500-1600mm
Coils ID, OD: Φ480mm-800mm, 2100mm
Coils weight: max 30T
Capacity of slitting: at 0.6mm, max 20strips
At 8mm, max 8 strips
Speed of slitting:  thickness ≤ 3mm, max 120m/min; more than 3mm, max 80m/min
Delivery time: 120days
Business process:
Customer confirmed the order on his first time of visiting our company in 2010, and has already bought two lines from us.
We sent engineers to customer's factory, the performance of working machine satisfy the customer.

Specification Form:

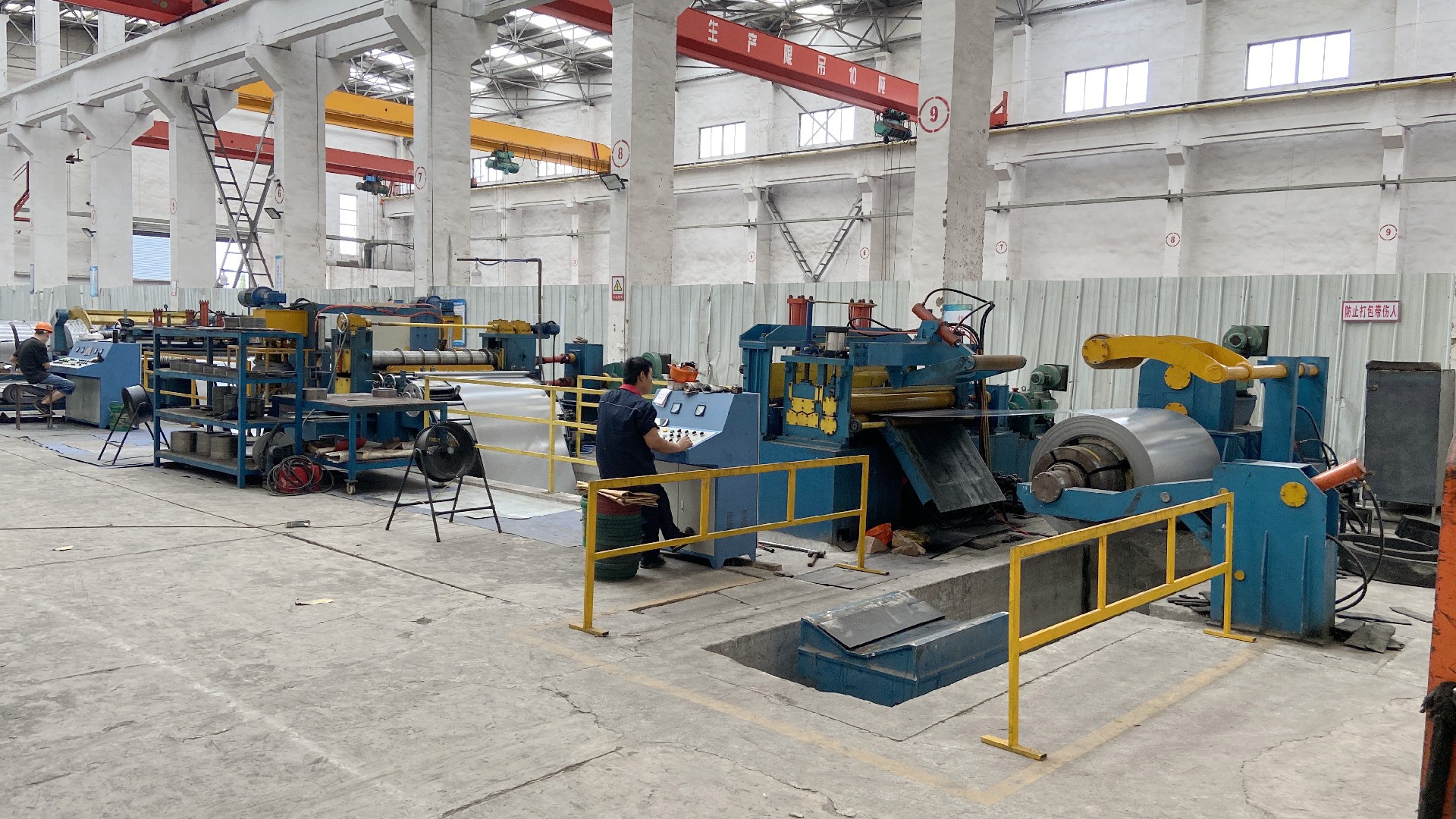

Work Flow

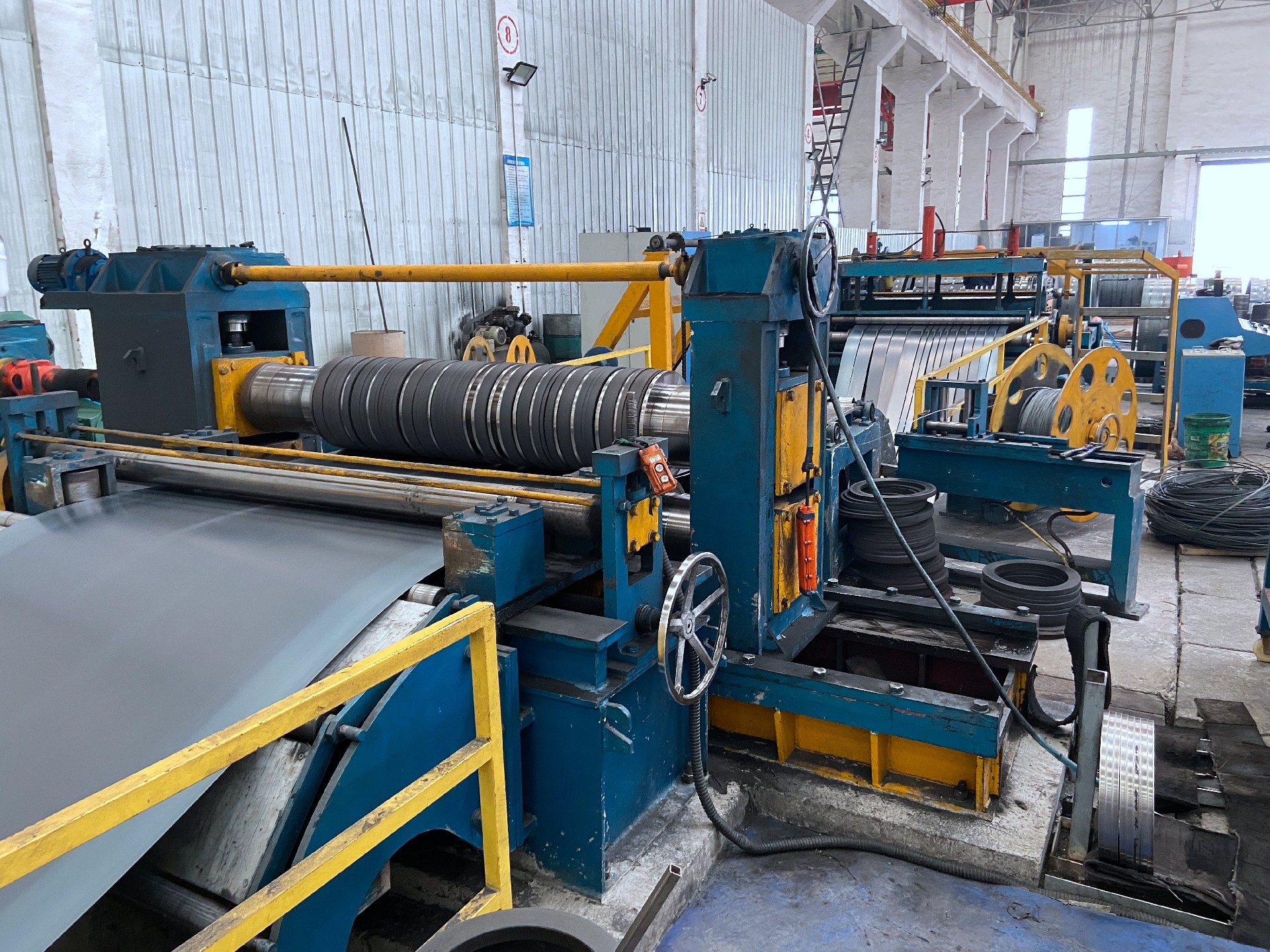

Coil-loading Car——Uncoiler——Coil-head Guide and Presser——Coil-head Straightener and Shoveler——Double-rollers Pinch feeder, Five-rollers Leveler —— Coil-head Shear——Hole Accumulator (1)——Entry Guide ——Disc Slitter —— Scrap Reeler——Hole Accumulator (2)——Pre-separator and Tensioner——Coils Pressing and Separating Bracket and Recoiler ——Coils Discharging Car

Notes:
Uncoiler, or called "decoiler", has two styles of structure: one is single mandrel style, used for coil weight not more than 20T; the other is double mandrel style, used for heavy mother coils of 25Tons or more.
Coil head shear, or called "coil head cutter", to cut off the redundant coil heads of hot rolled coils.

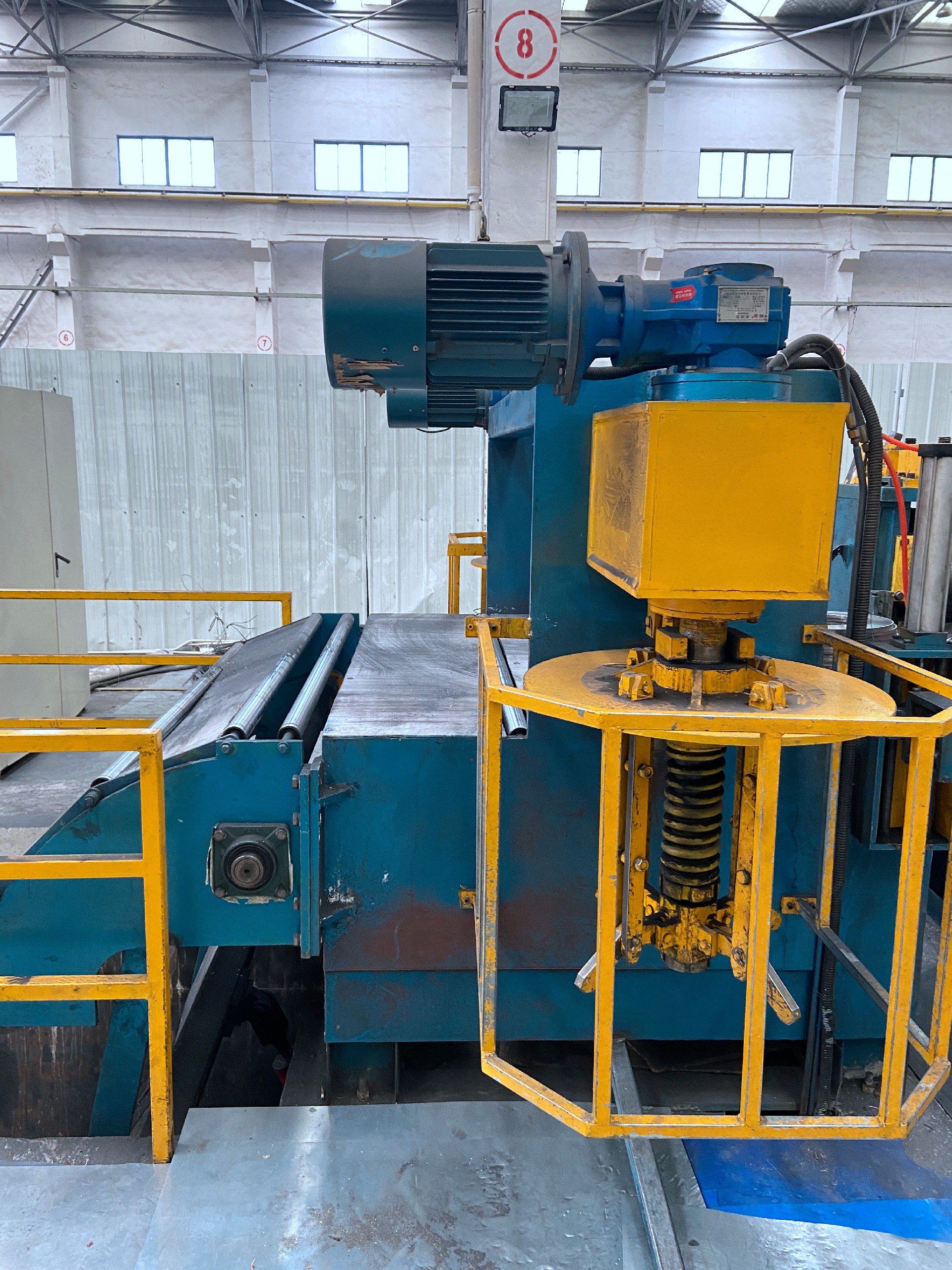

(1) Hole Accumulator, or called "accumulation pit/loop" two structure can be chosen: one structure is one or one pair of turnover plates whose opening and closing are driven by hydraulic cylinders, the other is lifting bridge whose up-down-moving is driven by motor. Its function is to accumulate certain amount of steel strip in the hole so as to make sure the continuous high speed working of the line.
